main product photo

SUZUKI REAR BRAKE 1 HOSE KIT

Be the first to review this product
SKU: SUZ-11002R
From £35.90 £29.92
GSX 1100 (GS1150) EF / EF2 / EG 1984-1986
OEM:69480-00A01
Help with additional length?
Custom Length Help

Use the drop-down options below to select what additional length you require. The additional length is added to our pattern detail of this part number.
Cables: This is an addition to overall length of the cable. The free-play of the inner wire is maintained. In cases where a junction box is used, the additional length with be added to the top cable.
Hoses: This is an addition to the hose(s) attaching to the master cylinder end. In cases where a rigid section is used (such as on Off-Road hoses), the additional length with be added above the rigid section.
Please check the description of this part to see if there are any non-OEM features to this part. If you are looking for a length or specification outside the range provided, please look at our Bespoke Section.

Close
Add to Wish List

Compatible Vehicles

Type Manufacturer Engine Model Year
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1984
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1985
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1986
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1987
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1988
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1989
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1990
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1991
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1992
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1993
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1994
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1995
MOTORCYCLE SUZUKI 1100 GSX 1100 (GS1150) EF/EF2/EG 1996

Details

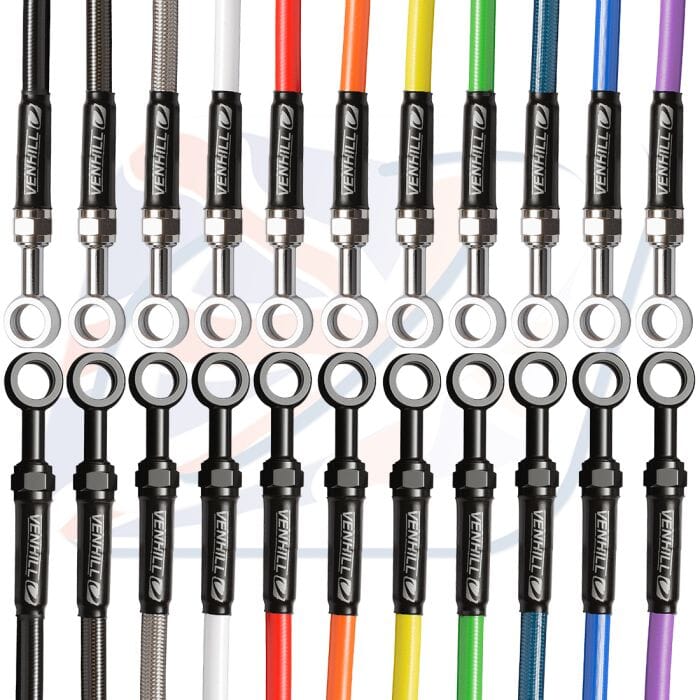

  • Venhill brake lines, clutch lines and line lenghts use smooth bore DuPont Teflon hose for better heat resistance.
  • Marine grade stainless braiding eliminates expansion so that all the braking force is transmitted to the brake.
  • Corrosion-free 303 stainless steel swivel unions allow perfect twist-free alignment.
  • Dome-head banjo bolts for clean look and work easier on cramped modern machines.
  • PVC jacket from a range of colours protects the braided hose and paintwork
  • When needed off road lines have a nylon rigid sleeving to clamp the hose on fork legs or swing arm.
  • End fittings supplied in high quality chrome with copper washers (Off road lines).
  • End fittings available in stainless steel, high quality chrome, or black finish (Road).
  • Re-use existing bolts or purchase banjo bolts separately.
  • All brake line kits include banjo bolts with copper washers and installation guide. These items are not shipped with simple Powerhose plus line lengths.
  • Every Venhill hose is built to meet or exceed DOT and TUV requirements. Every line is gas pressure tested to 1500 PSI.
  • Powerhose plus brake lines are avaliable in a variety of colours and lengths between 100mm and 5200mm in 25mm increments.



Downloads

PowerhosePlus.pdf
PowerhosePlus.pdf Download

Frequently Asked Questions

There are no FAQs for this product. Click ask a question to ask your question.
