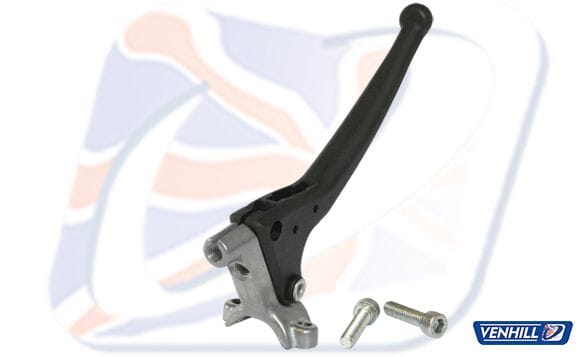

CABLE CONTROL LEVER WITH SCREWS

MECHANICAL OPERATION, TO SUIT 22mm-25mm HANDLEBARS. TOTAL LEVER ASSEMBLY LENGTH IS 195mm LONG AND THE BLADE IS 160mm FROM THE PIVOT POINT TO THE TIP OF THE BLACK LEVER BLADE. THE CONTROL CABLE MOUNT IS AN M8x1.25 THREAD AND THE LEVER TAKES AN 8mm DIAMETER BARREL NIPPLE, WHICH CAN BE 10mm TO 16mm WIDE. THE BODY OF THE LEVER BLADE IS 17mm THICK BUT TAPERS DOWN TO 11mm BEFORE THE BALL TIP END. THERE IS A CONNECTION PORT FOR A MICROSWITCH WITH AN M8x1.00 HOLE. THIS ASSEMBLY CONTAINS THE LEVER AND M6x1.00 FIXING SCEWS.
