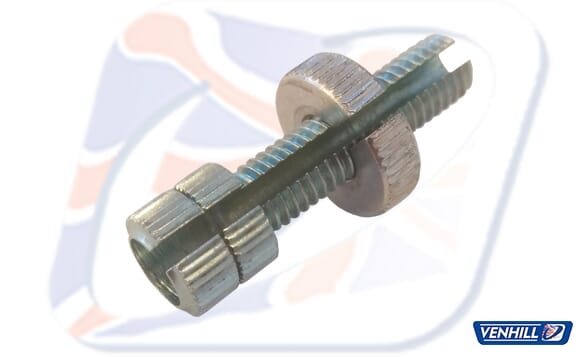

SLOTTED LEVER ADJUSTER, M8x1.25 x 30mm

SLOTTED LEVER ADJUSTER, M8x1.25 x 30mm
A8125S/30
Excl. Tax: £3.24 Incl. Tax: £3.89
Availability:

In stock

SLOTTED LEVER ADJUSTER WITH AN M8x1.25 x 30mm THREAD. INTERNAL DIAMETER OF 8.10mm x 9mm DEPTH.

LOCK RING HAS AN O.D. OF 18mm AND A THICKNESS OF 5mm. THE OUTER FACE OF BOTH ADJUSTER AND LOCK RING ARE KNURLED FOR IMPROVED GRIP AND FINE ADJUSTMENT.

SUITABLE FOR WIRE UP TO 2.5mm DIAMETER AND COMPATIBLE WITH OE CLUTCH OR BRAKE CABLES WITH CAP FERRULES OR FERRULE BENDS OF 8mm DIAMETER.
Description

Details

SLOTTED ADJUSTER
THREAD : M8x1.25 x 30mm
INTERNAL DIAMETER : 8.10mm x 9mm DEPTH.
THROUGH BORE : 3.60mm
SLOT WIDTH : 2.55mm
GRIPPABLE ADJUSTMENT BODY : 12mm O.D. x 11mm LENGTH
MATERIAL & TEXTURE : ZINC PLATED STEEL, KNURLED

SLOTTED LOCK-RING
OUTER DIAMETER : 18mm
WIDTH : 5mm
MATERIAL & TEXTURE : CLEAR ANODISED ALUMINIUM, KNURLED

COMPATIBLE WITH THE FOLLOWING VENHILL COMPONENTS : F100, F201, F8C, FT48N, FB301B, FB302B, FB303B, FB304B, FB5C & FB6C.
