6.80mm O.D. CARB TOP FERRULE FOR LB1
SKU:
F88G
£0.41
£0.34
Availability
In Stock

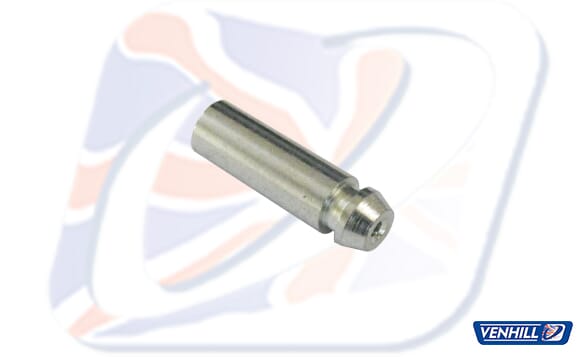

6.80mm O.D. x 23.00mm LONG. 5.00mm O.D. GROOVE x 2.00mm WIDE, POSITIONED 3.00mm IN FROM THE NOSE OF FERRULE. 5.10mm I.D. x 13.00mm DEPTH, SUITABLE FOR 5.00mm CONDUIT. 1.80mm DIAMETER THROUGH HOLE AND SUITABLE FOR WIRE UP TO 1.50mm. ZINC & CLEAR PLATED MILD STEEL.
Details
This ferrule can be fixed to LB1 conduit with a mechanical crimp such as a centre punch, vice compression, or built-for-purpose tooling. At Venhill, we crimp the 7mm O.D. body of this ferrule with a hexagonal jaw press measuring 6.25mm across flats. This provides a superbly strong connection between the ferrule and the conduit.
