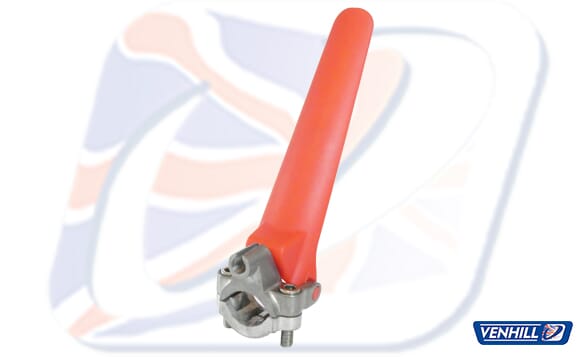

MECHANICAL DEADMAN LEVER

MECHANICAL OPERATION, TO SUIT 22-25mm HANDLEBARS. TOTAL LEVER ASSEMBLY LENGTH IS 180mm LONG AND THE BLADE IS 150mm FROM THE PIVOT POINT TO THE TIP OF THE RED LEVER BLADE. THE CONTROL CABLE MOUNT IS AN M8x1.25 THREAD AND THE LEVER TAKES AN 8mm DIAMETER BARREL NIPPLE, WHICH CAN BE 10mm TO 16mm WIDE. THE BODY OF THE LEVER BLADE IS 35mm WIDE BUT TAPERS DOWN TO 24mm BEFORE THE ROUNDED TIP END. THIS ASSEMBLY CONTAINS THE LEVER, UNDERSIDE CLAMP ( 0410505 NON THREADED PLAIN HOLE) AND M6x1.00 FIXING SCEWS.
