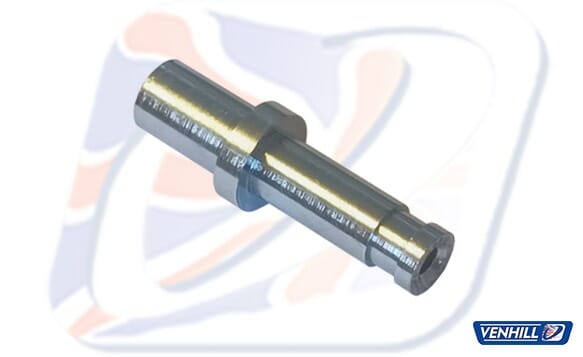

7.00mm O.D. SHOULDERED FERRULE FOR LB4
SKU:
RB7M18/C
£3.50
£2.92
Availability
In Stock
7.00mm O.D. x 18.00mm LONG NOSE. 11.00mm O.D. SHOULDER x 3.00mm WIDE. 6.00mm O.D. GROOVE x 3.50mm WIDE, POSITIONED 2.00mm IN FROM THE NOSE OF FERRULE. BODY O.D. 8.00mm x 33.00mm TOTAL LENGTH. 8.10mm I.D. x 12.00mm DEPTH, SUITABLE FOR 8.00mm CONDUIT. 3.20mm DIAMETER THROUGH HOLE AND SUITABLE FOR WIRE UP TO 2.00mm. ZINC & CLEAR PLATED MILD STEEL.
Details
This ferrule can be fixed to LB4 conduit with a mechanical crimp such as a centre punch, vice compression, or built-for-purpose tooling. At Venhill, we crimp the 9mm O.D. body of this ferrule with a hexagonal jaw press measuring 8.00mm across flats. This provides a superbly strong connection between the ferrule and the conduit.
